Athermal AWG ( AAWG ) Module :


Athermal AWG ( AAWG ) Module :

宇芯亞光電開發的無熱AWG 模塊, 采用高質量材料搭配獨特的組裝工藝 , 因此可以保證通過嚴苛的環境測試 , 例如工業等級要求 -40 ~ 85 C , 可以輕松駕馭 . 全系列產品符合 TELCORDIA GR1209/1221 測試 .
平頂型( FLAT TOP)及高斯型(GAUSSIAN) 皆可符合客戶要求 , 未來5G 將是分波的最大應用 , 無人駕駛的普及也與其息息相關 , 這些都是無熱AWG 的機會來臨.

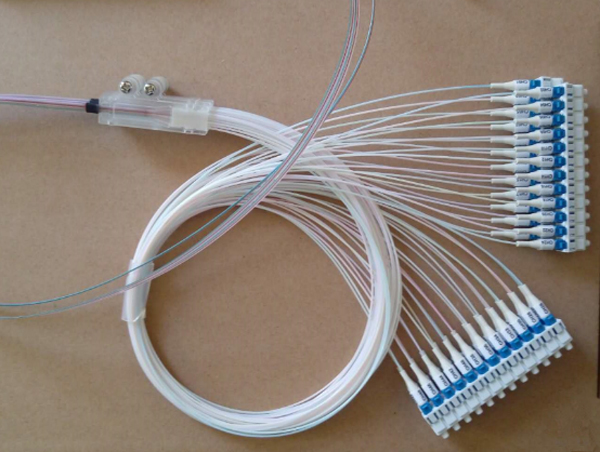

Peak Fiber's Athermal AWG Module is using quality components & materials , as well as we have unique technologies in assemblies in AWG module , in order to ensure module pass Harsh environment test .  For example : Our AWG module meets requirement of industrial temperature ( I-Temp ) test for -40 ~ 85C  .
All modules meet Telcordia GR 1209 / 1221 – Core .

Features :
Compliant to Telcordia GR-1209/1221
Flat Top & Gaussian Type
50G & 100G
16ch up to 96ch
I-Temp & C-Temp
Mux & Demux
PDL < 0.5dB
