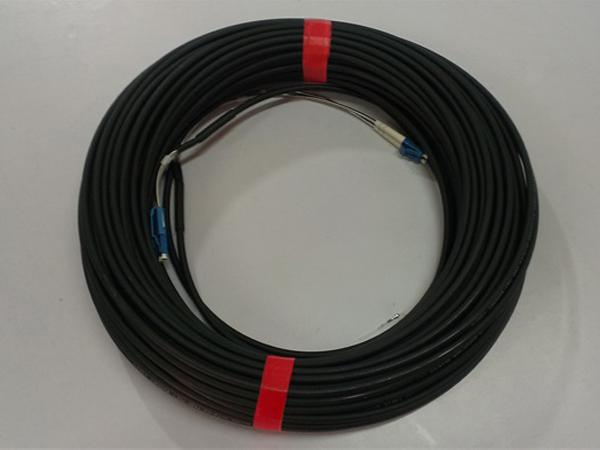

Patchcord :
Features :
Low insertion loss
Low back reflection
High quality connector
Riser & LSZH cable option
SM & MM
Interferometer available

Connector Type
ST --- ST Connector
SC --- SC/PC Connector
SD --- SC/PC Duplex (with clip)
SA --- SC/APC Connector
FC --- FC/PC Connector
FA --- FC/APC Connector
FJ --- MTRJ female Connector
MJ--- MTRJ male Connector
LC --- LC/PC Connector
LD --- LC/PC Duplex (with clip)
MU--- MU/PC Connector
MD--- MU/PC Duplex
UJ --- MUJ Connector
MP--- Module ferrule
0 0 --- No Connector
xx --- Others

Fiber Type /span>
9 --- 9/125um fiber
5 --- 50/125um fiber
6 --- 62.5/125um fiber
3--- 50/125um OM3 fiber

Cable Type
250um bare fiber
900um loose tube cable
900um tight buffer PVC cable
900um tight buffer LSZH cable
1.8mm Duplex Minizip , PVC cable
1.8mm Duplex Minizip , LSZH cable
2.0mm Simplex , PVC cable
2.0mm Simplex , LSZH cable
2.0mm Duplex , PVC cable
2.0mm Duplex , LSZH cable
2.4mm Simplex , PVC cable
2.4mm Simplex , LSZH cable
3.0mm Simplex , PVC cable
3.0mm Simplex , LSZH cable
3.0mm Duplex , PVC cable
3.0mm Duplex , LSZH cable
3.0mm Round cord , PVC cable
3.0mm Round cord , LSZH cable

Others

Cable Color
1--- Yellow
2---Orange
3--- White
4---Gray
5 --Aqua

Polishing Grade
P --- PC  40 ~ 45dB
S ----SPC 45 ~50dB
U --- UPC 50 ~60dB
A --- APC > 60dB

Specifications :

Item	Optical Fiber Patch Cord
Fiber mode	Single-mode								Multimode
Connector type	FC/SC/ST		LC,MU			FC/APC SC/APC			FC SC ST LC MU
Insertion loss (dB)
	≦0.2		≦0.2		≦0.2			<0.3
Return loss (dB)	PC	SPC		UPC			APC		M
	≧40	≧45		≧50			≧60		-----
Operating Temp.(°C)	-40°C ~ +85°C
Storage Temp.(°C)	-40°C ~ +85°C
Cable Length(m)	Customer specified
